piqlWriter

Modulating light for long-term data storage.

Design workshop

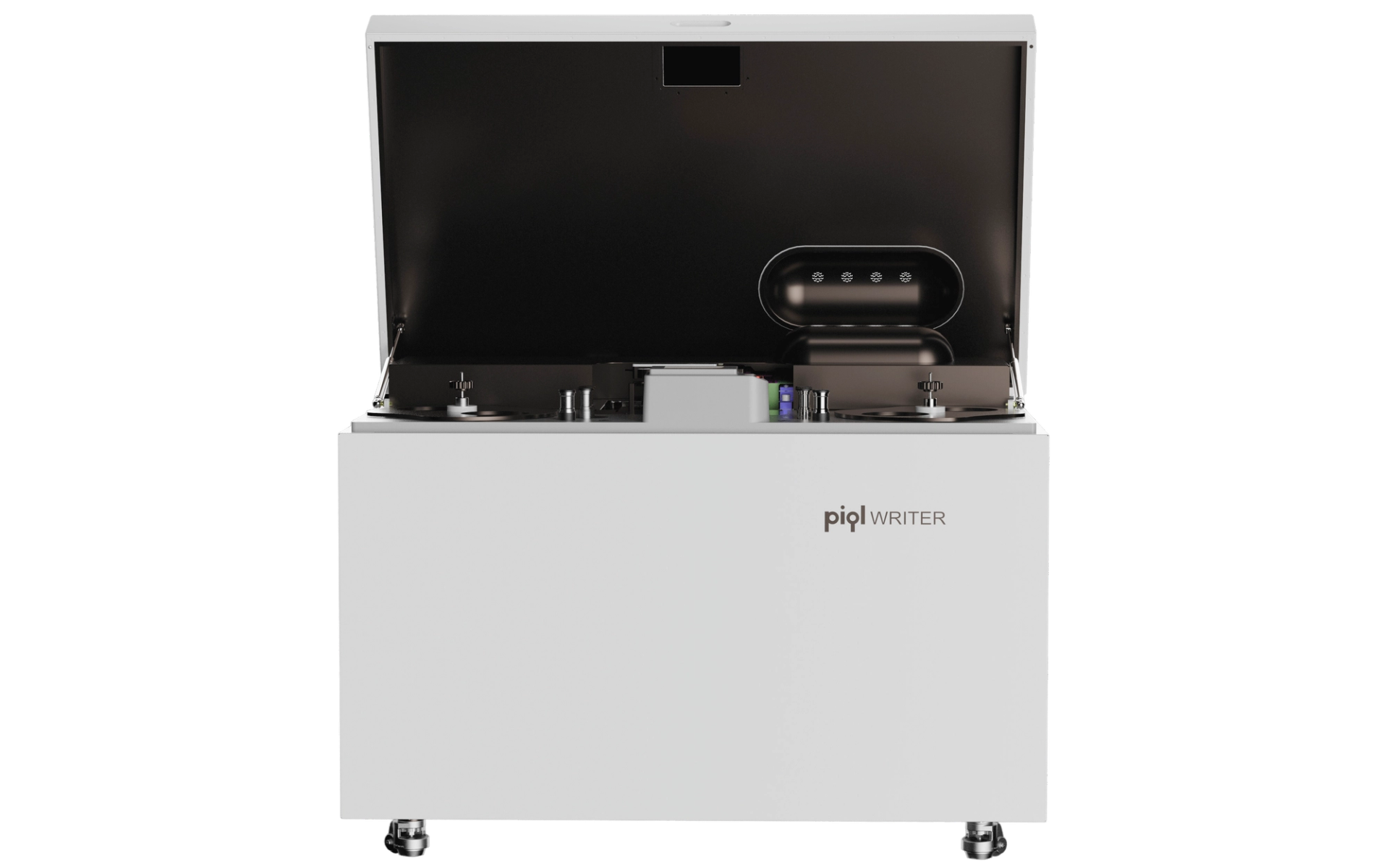

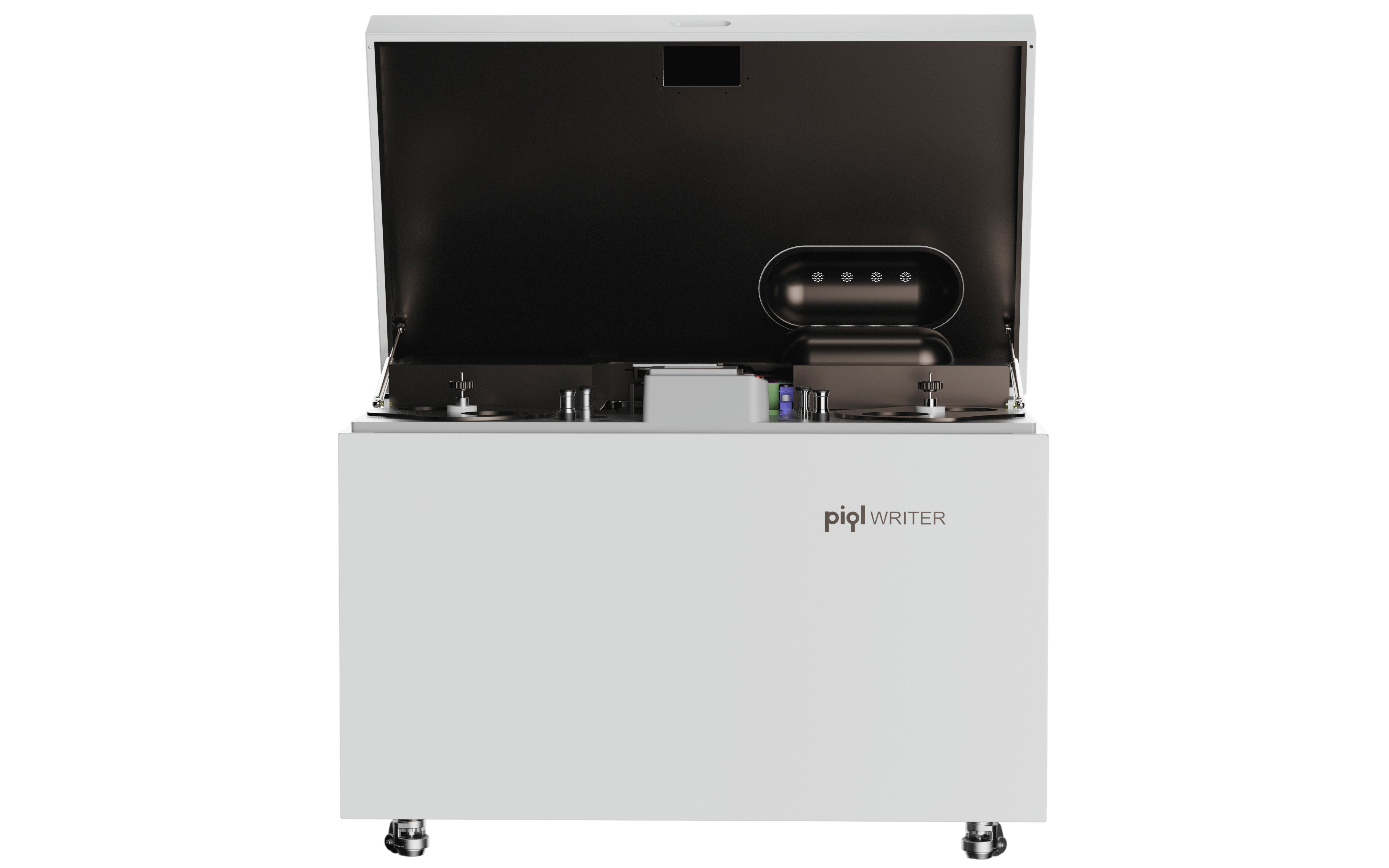

Making it Possible. The piqlWriter

The piqlWriter is a highly sophisticated machine combining the best of mechanics, optics, electronics, image processing and light modulation. Designed to be able to store digital files on piqlFilm for 24/7 operation, and capable of producing more than 1 PB of data per year.

Through years of ground breaking development and testing, the current 2nd generation piqlWriter can write data both in digital and visual format.

The machine is installed in production locations around the world offering storage on piqlFilm as a service. As part of the Piql System, the piqlWriter can also be purchased for complete control of the full production process. Get in touch with us to learn more.

Made in Norway.

Testimonial image

Capabilities

2 MB

Data density per frame

40 MB/s

Writing speed. Equals 20 frames per second (FPS).

2000+

Light pulses per second

TheThe piqlWriterpiqlWriter isis builtbuilt toto optimiseoptimise writingwriting speedspeed andand datadata density.density. Award-winningAward-winning andand purpose-builtpurpose-built toto ensureensure datadata staysstays alivealive forfor centuries.centuries. AnAn understatedunderstated paintedpainted finishfinish withwith preciselyprecisely machinedmachined aluminiumaluminium specificallyspecifically designeddesigned forfor Piql.Piql.

FREQUENTLY ASKED QUESTIONS

Got any questions?

What components comprise the system?

DMD-based light engine, 100W 528nm LED-based light source, intermittent film transport system and RMU server, which is a host computer responsible for receiving and transmitting data to the DMD engine. A touch display is used for user interaction.

What is the production speed?

20 frames per second (280 mm/sec)

What is the total system weight?

The total weight is 250kg

Where is the piqlWriter manufactured?

Tronrud Engineering, Hønefoss, Norway

What is the procurement timeline?

Minimum 1-year lead time

Does it support API connectivity?

Yes - piqlWriter supports server mode with Ethernet interfacing

What environmental conditions are required?

Temperature: ~20 degrees (programmable via embedded sensor) Lighting: Dark room environment essential Climate: Controlled settings recommended
