piqlReader
An essential part of verifying and reading data.
Fast Retrieval. Efficient Design

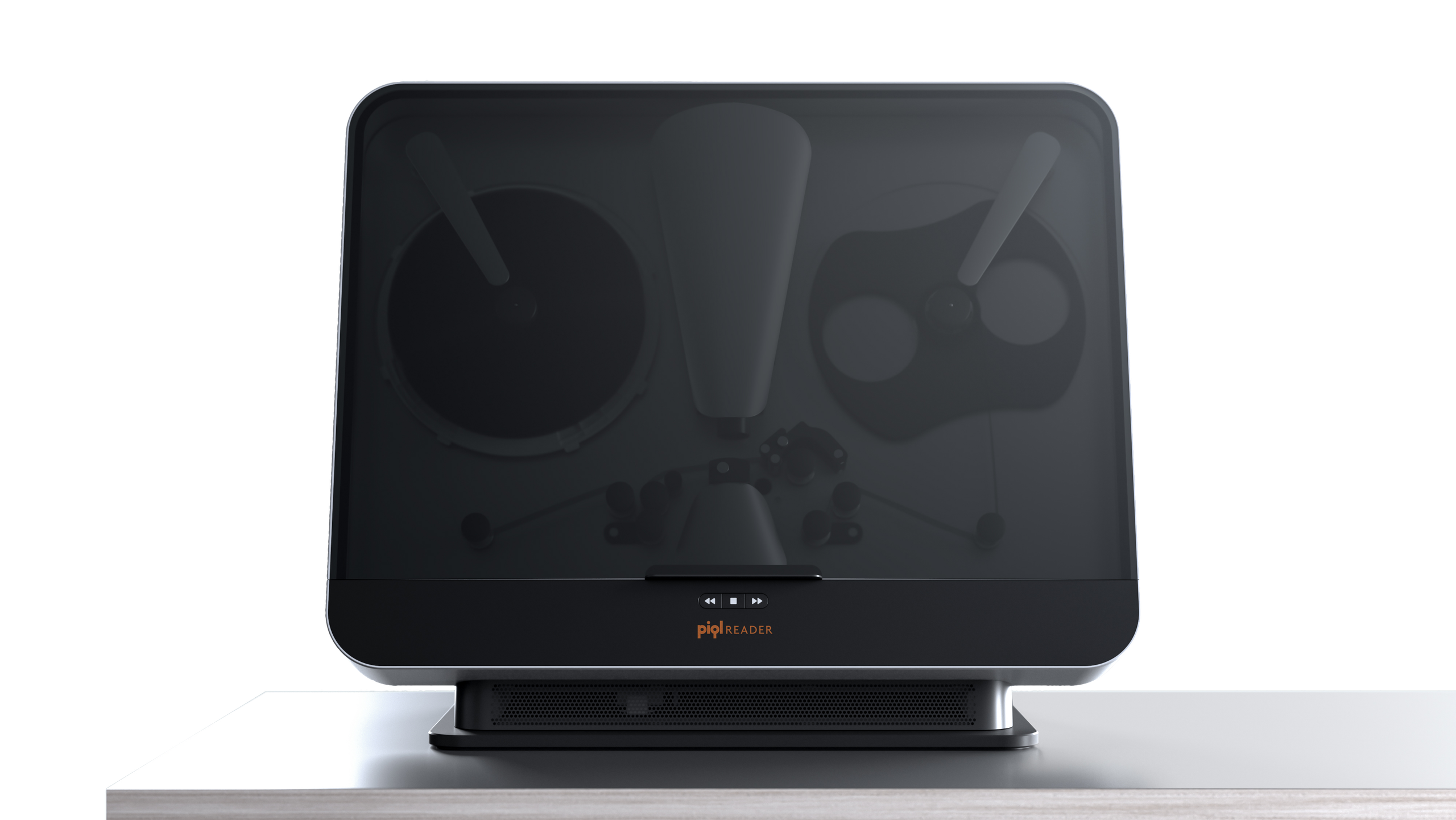

piqlReader has been designed to be easily installed and operated by anyone. With its modern and sleek design it can fit well in any environment and allows for full control of the retrieval process from piqlFilm.
The piqlReader is also used for retrieval from piqlFilm through piqlConnect when purchasing data storage on piqlFilm as a service.
Designed by Piql and built in Norway. It can either be purchased separately or as part of a full Piql System.
Capabilities
12k TDI
Capturing up to 200,000 lines/sec
24MB/sec
Max readback speed
200kg
Total weight
SPECS
405nm
Deep Blue LED
The piqlReader uses an LED-based light source.
12 fps
24 MB/sec
Second iteration of our DOGA Design Award winning 35mm film reader.
TheThe piqlReaderpiqlReader isis builtbuilt toto last.last. Award-winningAward-winning andand purpose-builtpurpose-built toto ensureensure fastfast andand reliablereliable datadata retrievalretrieval atat industrialindustrial scale.scale. TheThe refined,refined, eye-catchingeye-catching finishfinish isis meticulouslymeticulously craftedcrafted withwith precision-engineeredprecision-engineered aluminium.aluminium.
Got any questions?
What components comprise the piqlReader?

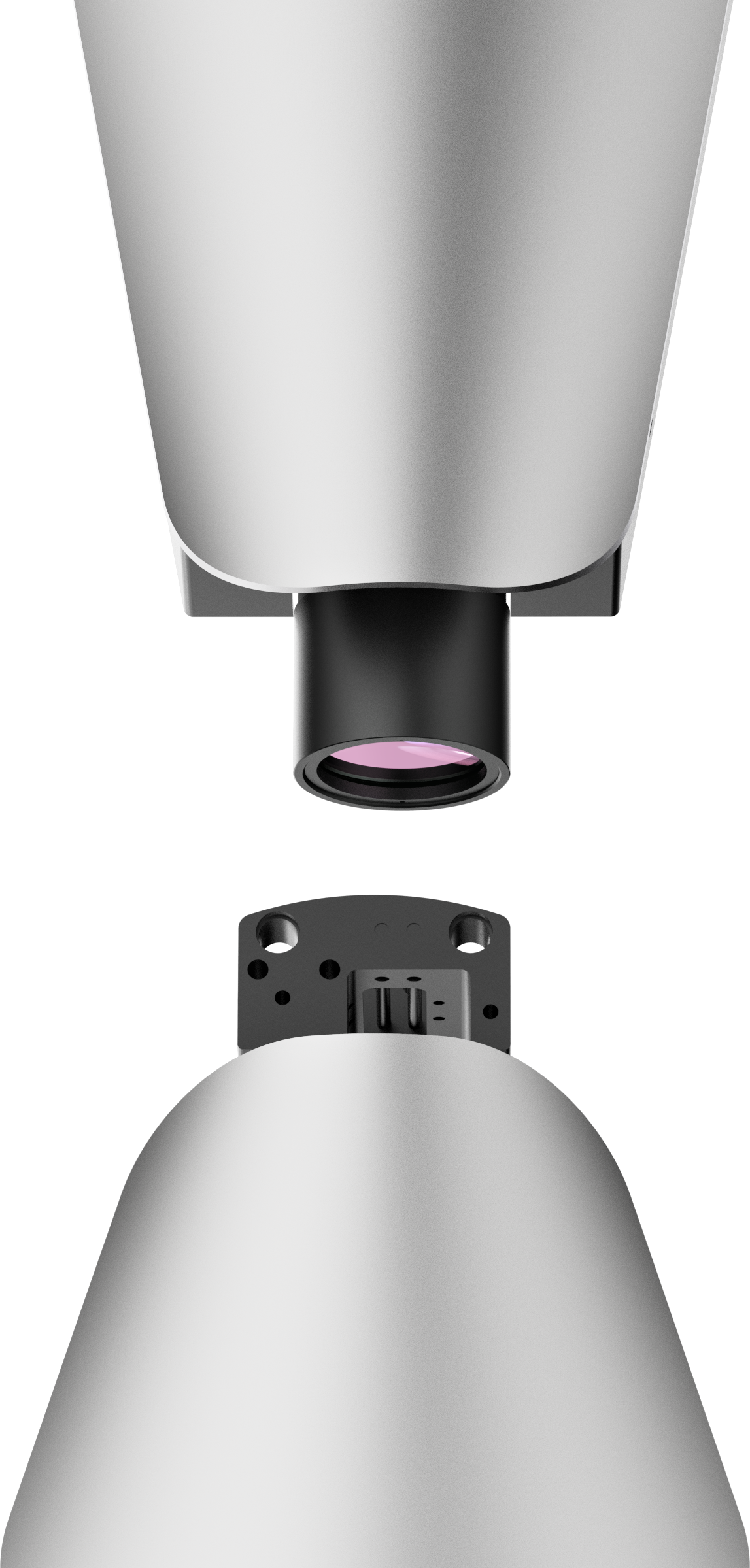

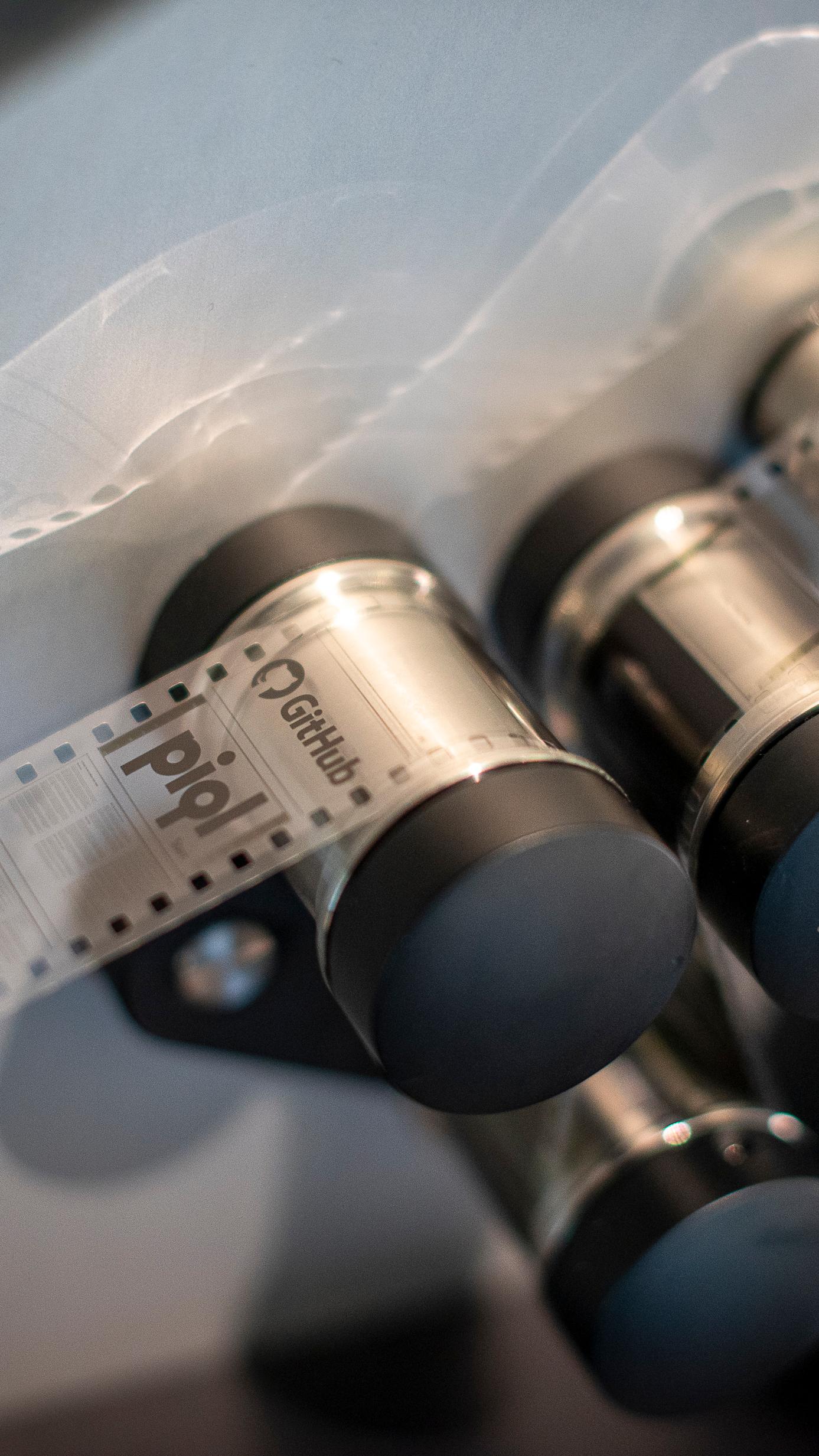

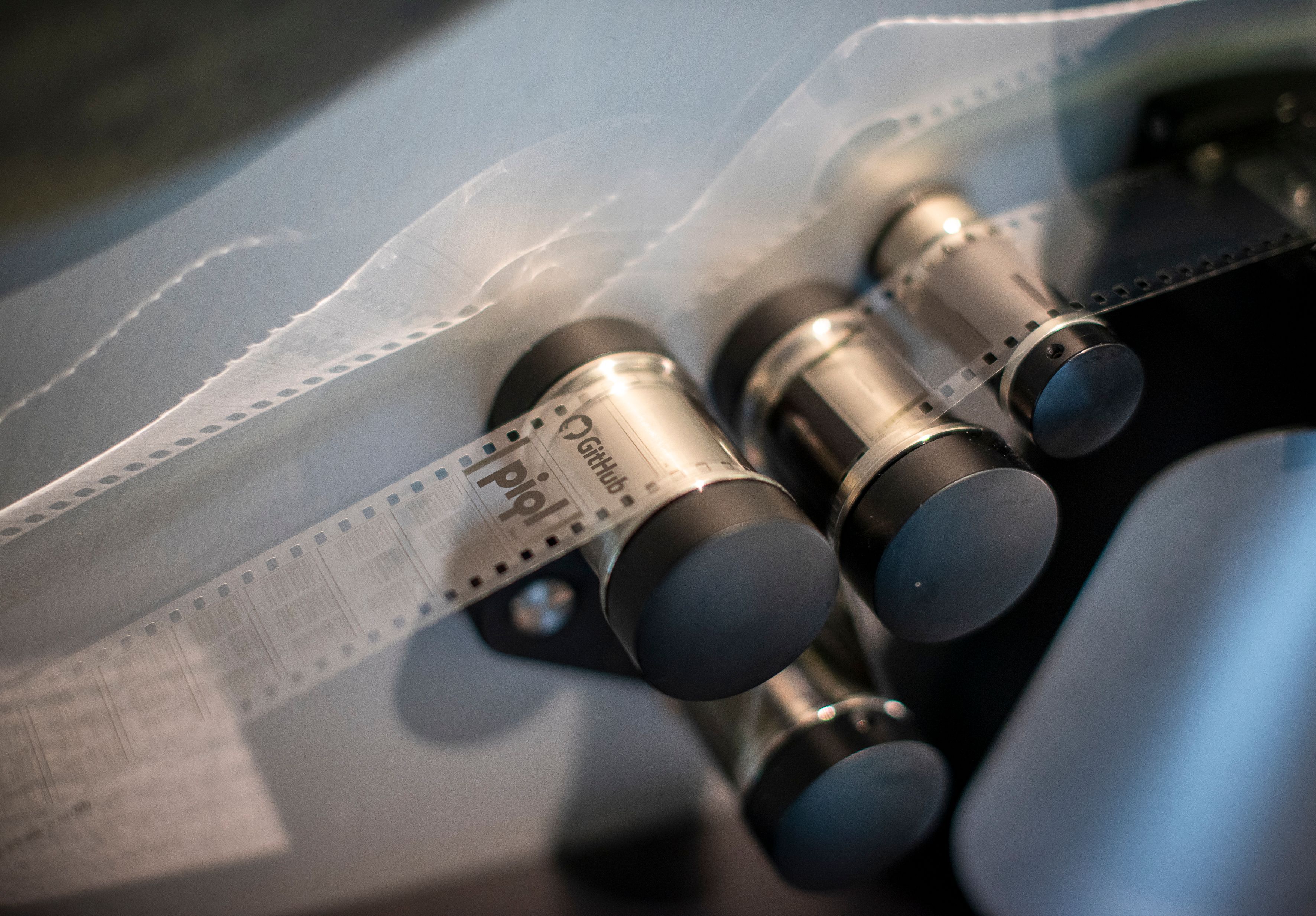

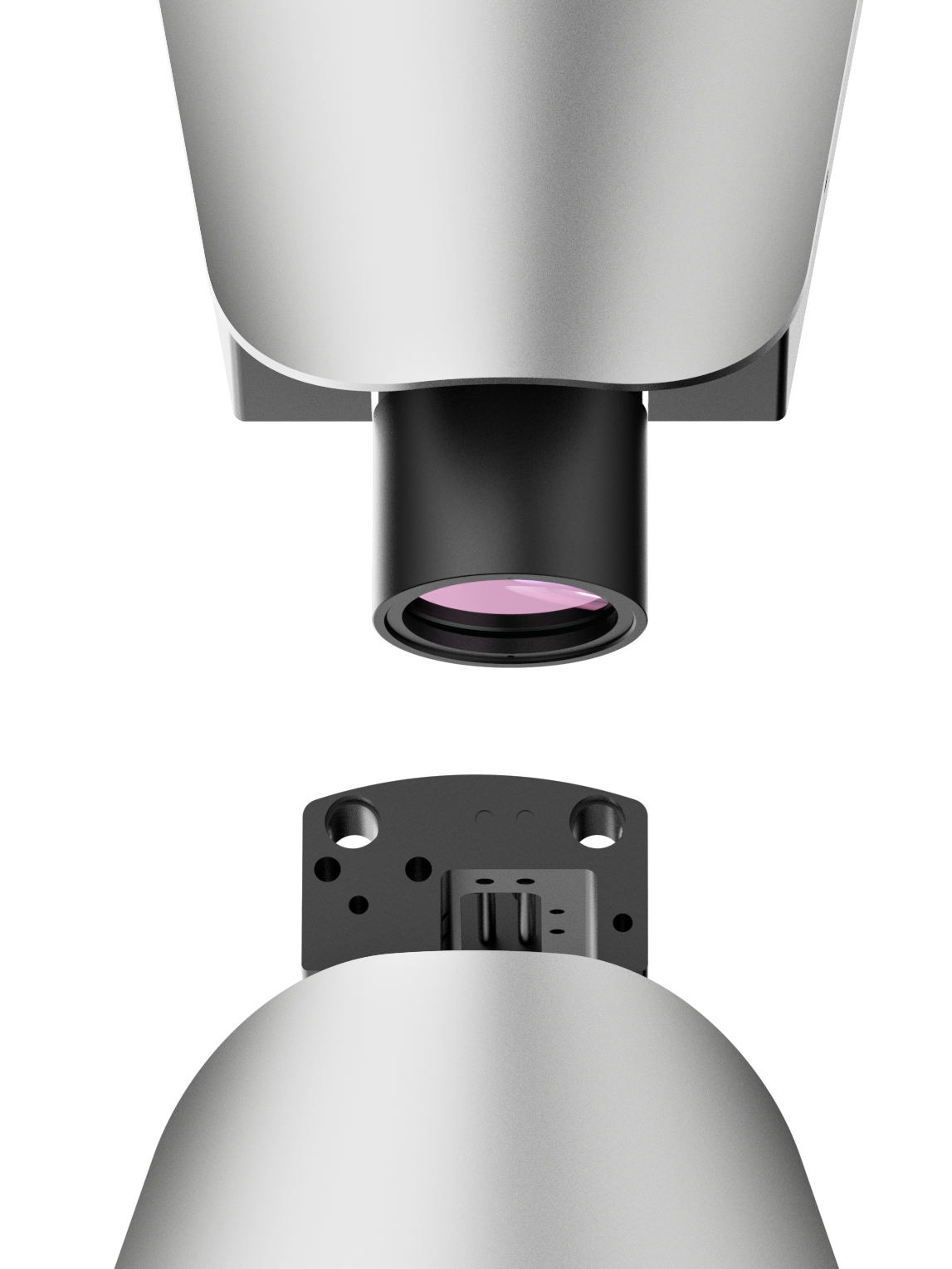

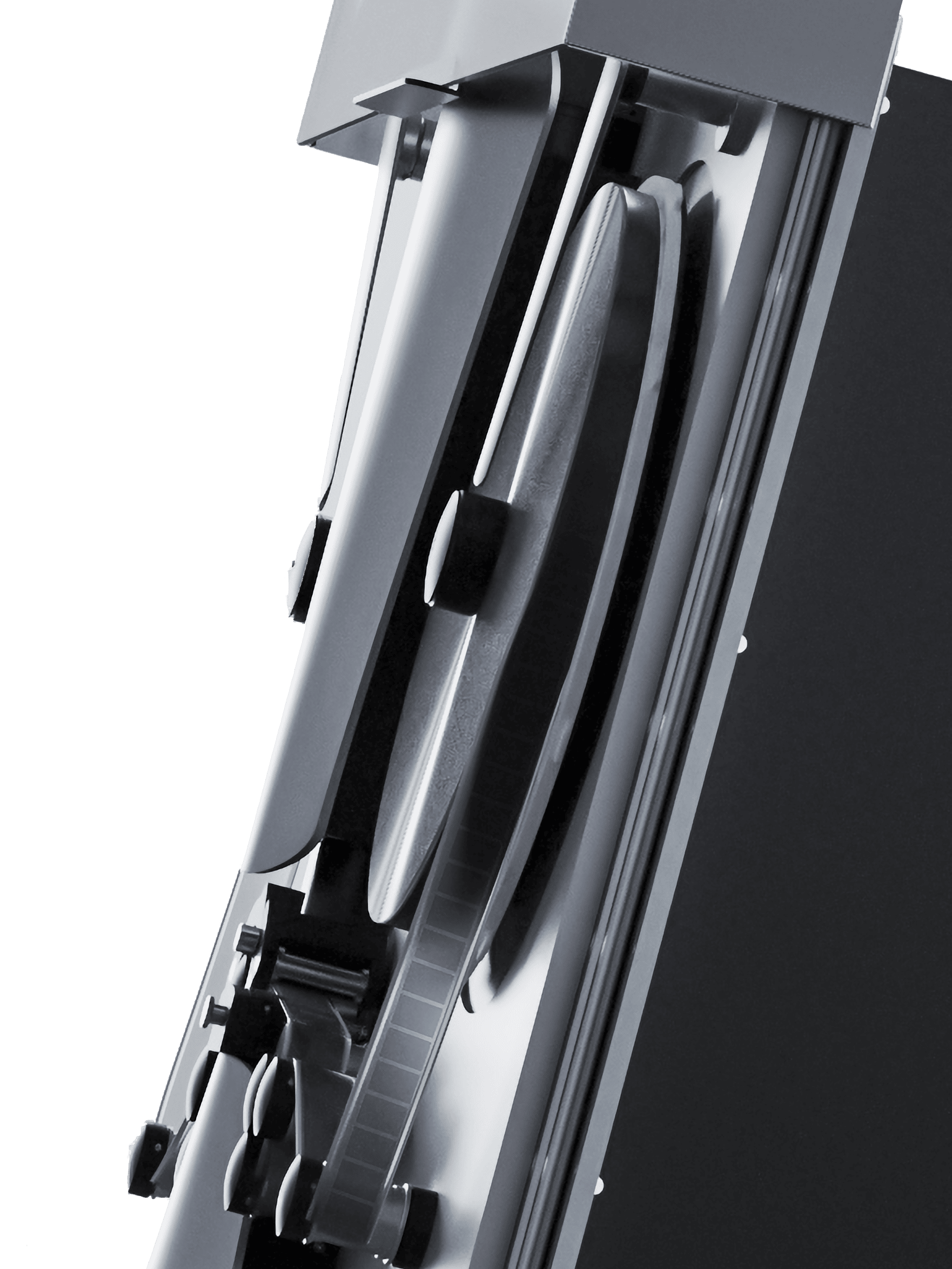

Continuous film transport with Linux based control system, 405nm LED-based light source, customised high resolution lens with f/5.7 aperture and MTF of 75% at 82 line pairs per mm, 12k TDI camera capable of capturing up to 200,000 lines/sec or up to 20 Gb/sec image acquisition, 1GB/sec real-time GPU-based image processing/decoding. Built in Windows computer for interaction. Note that the image acquisition is in Gb (Gigabit) and processing/decoding is in GB (Gigabyte)
What is the retrieval speed?
12 frames per second (equal to 24 mb/s)
What is the total system weight?
The total weight is 200kg
Where is the piqlReader manufactured?
Tronrud Engineering, Hønefoss, Norway.
What is the procurement timeline?
Currently in stock.
Who can operate the piqlReader?

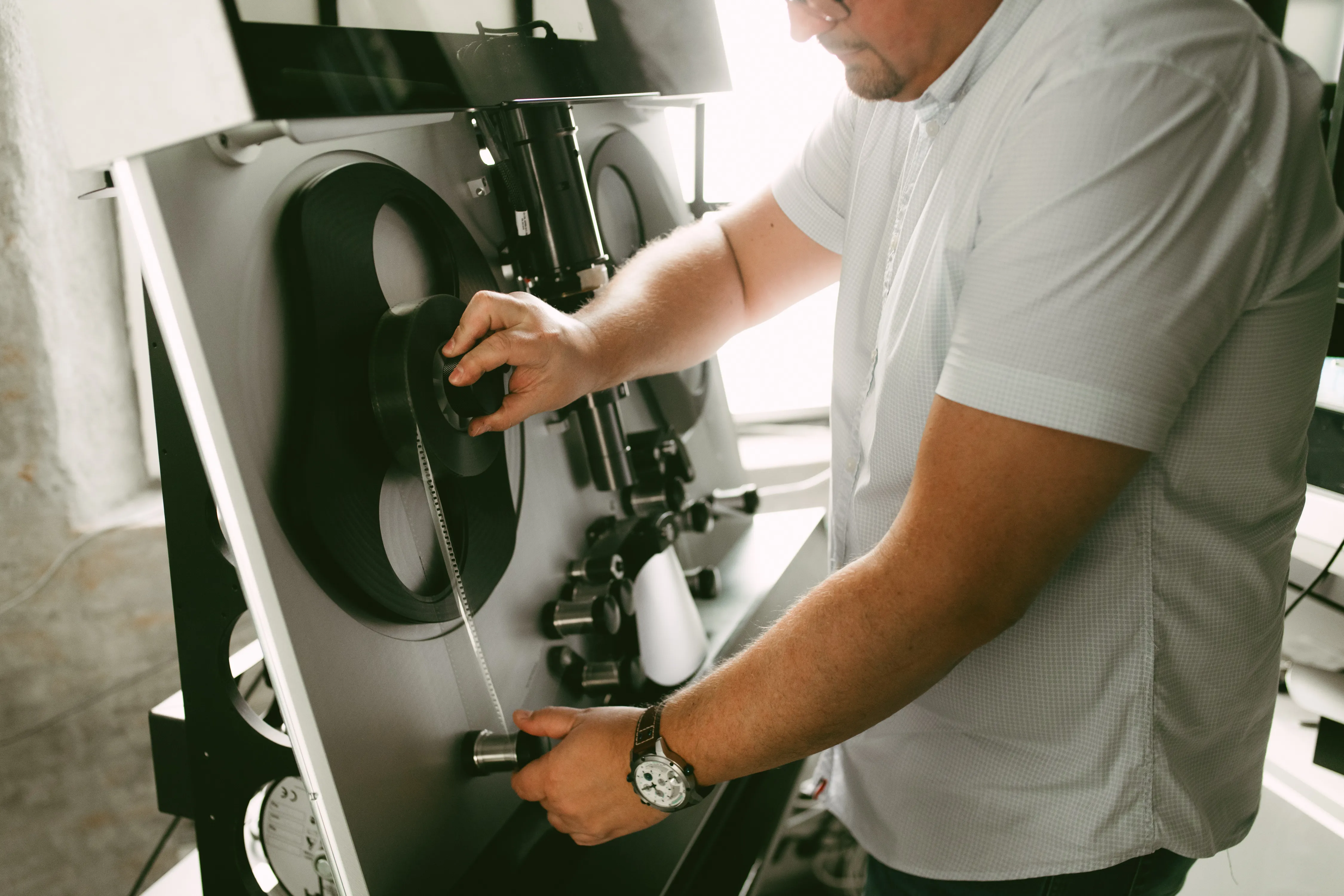

Anyone with basic 1 hour training can operate the piqlReader which is included as part of instalment. We also offer service level agreements (SLAs).
What environmental conditions are required?
Requirements: Temperature: ~20 degrees (programmable via embedded sensor) Humidity: Less than 50% relative humidity Climate: Controlled settings recommended
